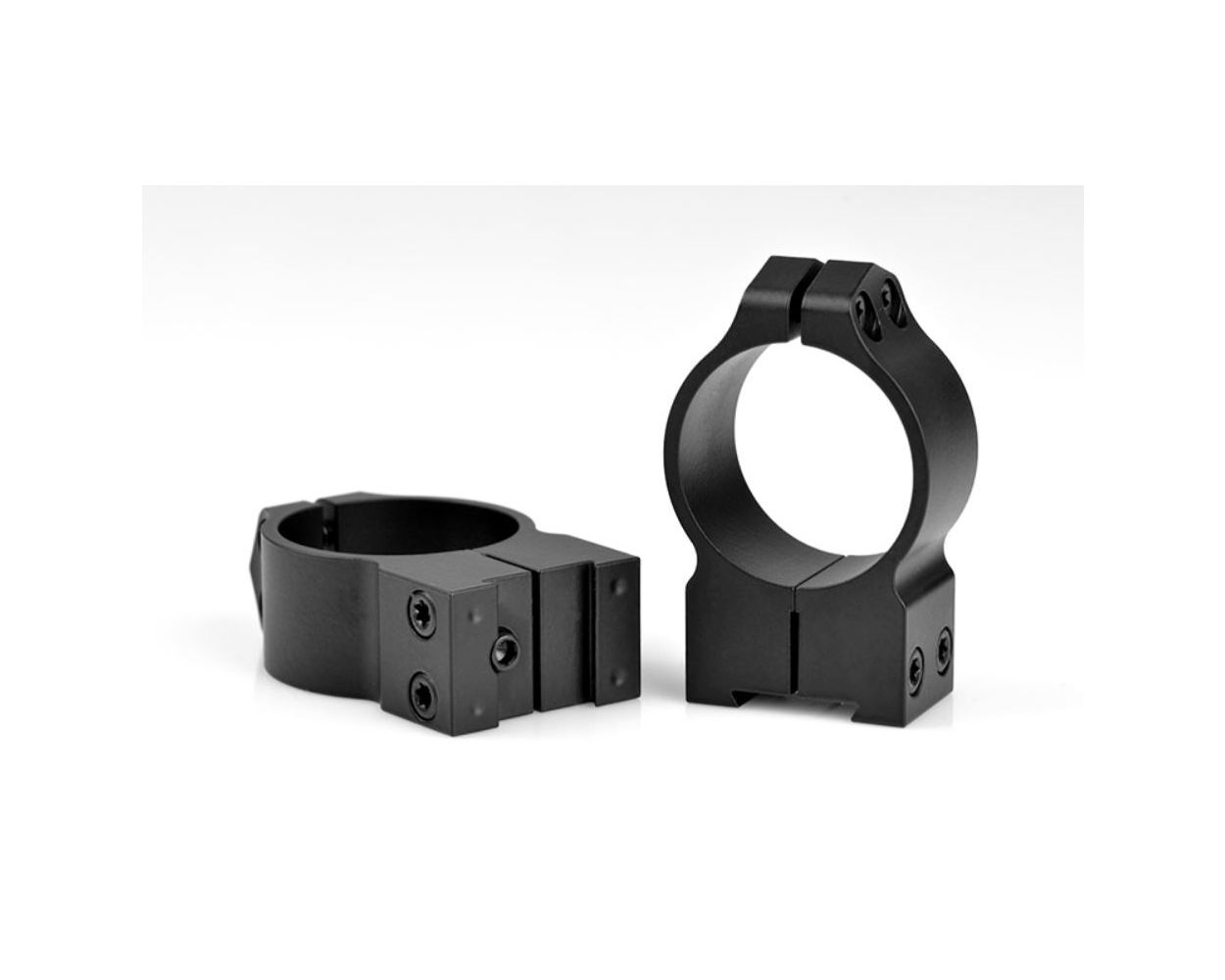

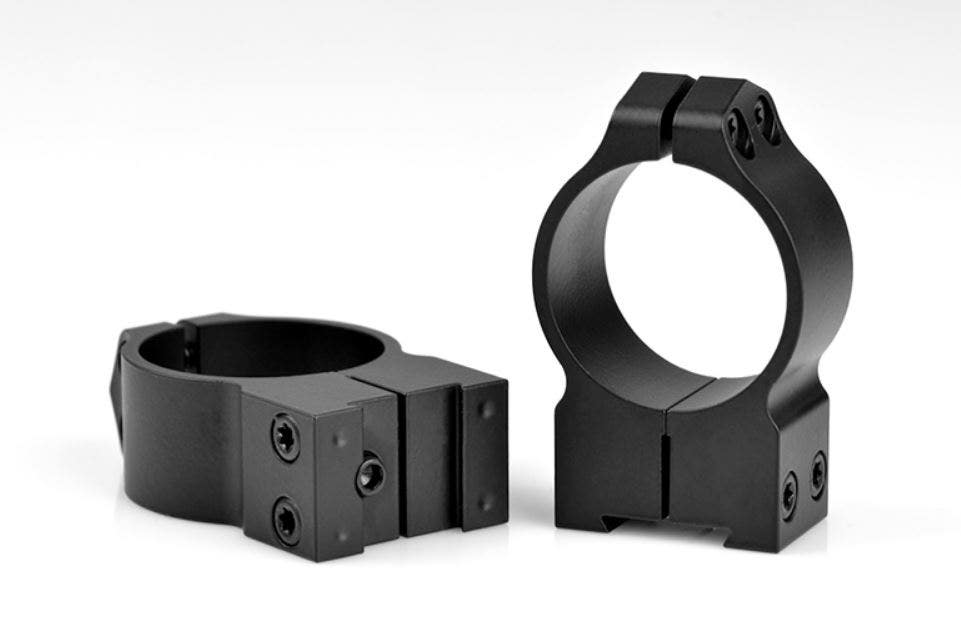

Warne Maxima Fixed Scope Mount 30mm STEEL CZ527

15B1M Warne 30mm CZ, PA, High Matte Rings. 16 mm Dovetail Fits most scopes with 42-52 mm Objectives 14B1M Warne 30mm CZ, PA, Med Matte Rings. 16 mm Dovetail THE IMPORTANT INFO Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing. Remove the 4 screws from both rings. Place the scope in the ring halves and re-insert recoil key (CZ & Ruger rings do not have specific recoil keys and utilize an integrated recoil management system). Start all 4 screws on both rings and move scope with rings to your scope bases. Place rings onto the bases with the recoil keys in the slots. Push each ring towards the muzzle to seat the recoil key. Adjust eye relief and level the reticle and tighten only the bottom screws to 25in/lb* max. Once both are correct, tighten the top screws on both rings to scope manufacturers’ recommended torque rating**, maximum of 25 in/lb. *Torque Spec are for dry threads, DO NOT USE THREAD-LOCKER COMPOUND **Many scope manufacturers’ have established specific torque ratings for their scope and you must follow their recommended torque. IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.
